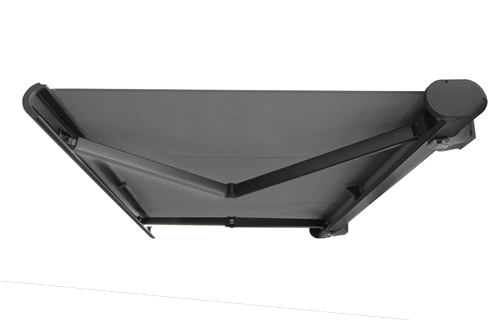

COCOON FOLDING ARM AWNING SPECIFICATIONS:
The Cocoon is a compact full cassette folding arm awning. Beautiful curves and minimal lines ensure suitability in any modern design application.
The Cocoon awning is German engineered and includes the Spanish Docril fabric.
This awning has a powder coated aluminium outer shell providing advanced corrosion protection.
The heavy duty Cocoon folding arms have a high spring tension ensuring that the awning fabric remains taut.
Robust Front Bar:
The strong double chamber extruded aluminium front bar provides a protective seal to the
cassette when the awning is retracted.
Arms
Unique multi angle adjustment arm connector (0- 30 degrees).
Fabric:
Docril fabrics are coated with Teflon and have high resistance to water, temperature,
corrosion and stress cracking. Rot proof thread is used in fabric stitching to ensure durability.
Up to 100% UV protection.

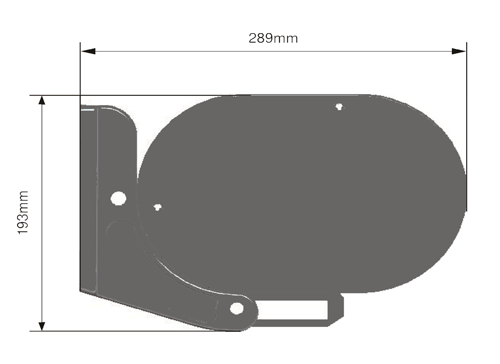

Cassette
Low profile design makes for a tight close.
Operation: Electric (with remote)
Electric Dooya Motor with manual override. Closed Full Cassette ensures the arms and fabric remain fully protected when closed.
Available Models:
Cassette in Anthracite (Dark Charcoal) and Fabric in Grey
Please contact us to check other sizes and colours.
Available sizes:
Width Projection
3500 x 2500 mm
4000 x 2500 mm
4000 x 3000 mm
4500 x 3000 mm
4500 x 3500 mm
5000 x 3500 mm
